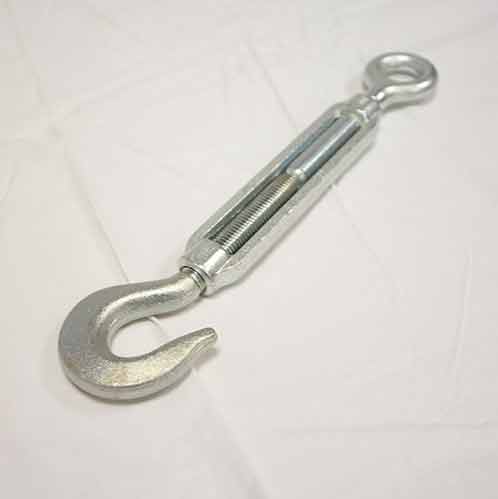

Turnbuckle eye and hook is galvanized and is designed to be used when corrosion resistance is not so important. We also offer turnbuckles with jaws and eyes.
Technical details:

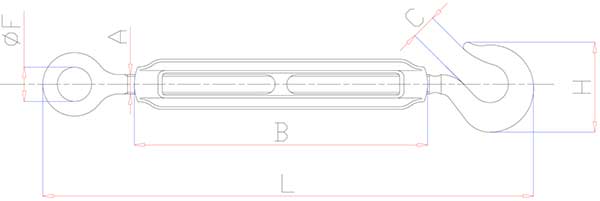

| A | Dimensions in mm | WLL in kg | Weight
kg/piece |
|||||
| B | C | F | H | L min | L max | |||
| M5 | 80 | 6 | 8 | 17 | 121 | 181 | 25 | 0,05 |
| M6 | 80 | 8 | 10 | 22 | 132 | 195 | 45 | 0,06 |
| M8 | 105 | 10 | 11 | 30 | 170 | 251 | 95 | 0,12 |
| M10 | 125 | 12,5 | 14 | 36 | 204 | 296 | 140 | 0,20 |
| M11 | 135 | 12,5 | 15 | 36 | 221 | 320 | 165 | 0,28 |
| M12 | 140 | 17,5 | 17 | 56 | 244 | 350 | 300 | 0,30 |
| M14 | 170 | 21 | 18 | 66 | 284 | 414 | 420 | 0,65 |
| M16 | 190 | 24 | 25 | 77 | 322 | 475 | 570 | 1,00 |
| M18 | 205 | 27 | 28 | 85 | 373 | 517 | 700 | 1,39 |
| M20 | 220 | 30 | 28 | 95 | 391 | 555 | 900 | 1,84 |
| M22 | 240 | 34 | 34 | 106 | 433 | 612 | 1100 | 2,52 |
| M24 | 260 | 36 | 36 | 114 | 470 | 662 | 1300 | 3,45 |
All images are symbolic.
