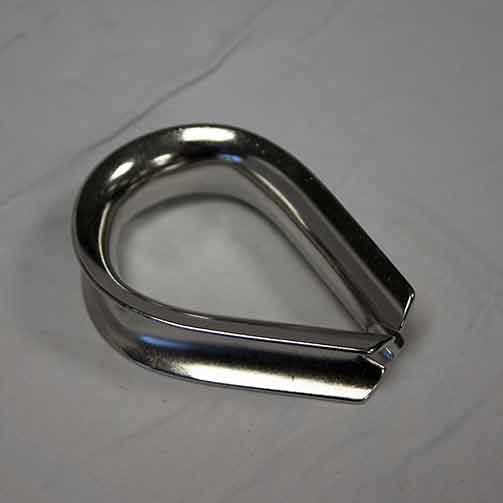

Stainless steel thimble is designed to be used with stainless steel wire rope. Thimble extends the life span of installed wire rope or sling.
Technical details:

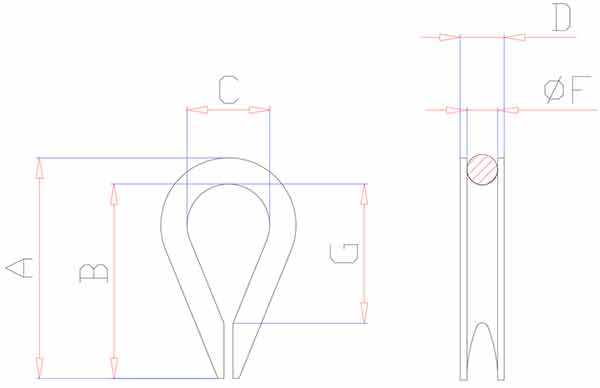

| For wire rope | Dimensions in mm | Weight
g/piece |
||||
| Size in mm | A | B | C | D | G | |
| 2 | 20 | 18 | 7,5 | 4,5 | 14 | 2 |
| 3 | 24 | 21 | 10 | 6 | 18 | 3 |
| 4 | 27 | 24 | 11 | 7 | 20 | 4 |
| 5 | 30 | 26 | 13 | 8,5 | 21 | 6 |
| 6 | 37 | 33 | 15 | 10 | 26 | 8 |
| 8 | 47 | 41 | 21 | 12,5 | 32 | 20 |
| 10 | 56 | 50 | 27 | 14,5 | 41 | 30 |
| 12 | 67 | 59 | 31 | 18 | 47 | 52 |
All images are symbolic.
