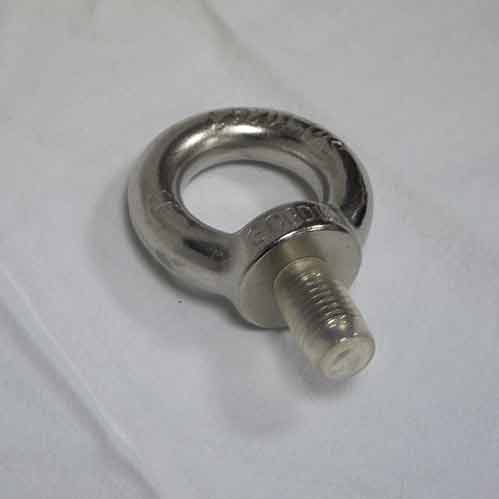

Stainless steel eye bolt is made by DIN 580 standards and has excellent corrosion resistance.

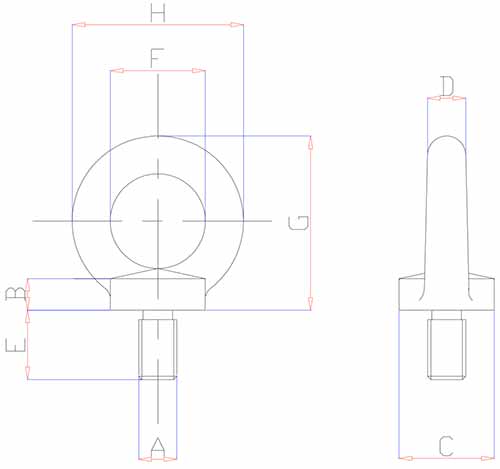

Technical details:
| A | Pitch | Dimensions in mm | Required torque Nm | Weight
kg/piece |
||||||
| B | C | D | E | F | G | H | ||||
| M6 | 1 | 6 | 14 | 6 | 11 | 14 | 27 | 26 | 2 | 0,02 |
| M8 | 1,25 | 6 | 20 | 8 | 13 | 20 | 36 | 36 | 5 | 0,06 |
| M10 | 1,5 | 8 | 25 | 10 | 17 | 25 | 45 | 45 | 10 | 0,11 |
| M12 | 1,75 | 10 | 30 | 12 | 20,5 | 30 | 53 | 54 | 17 | 0,18 |
All images are symbolic.
