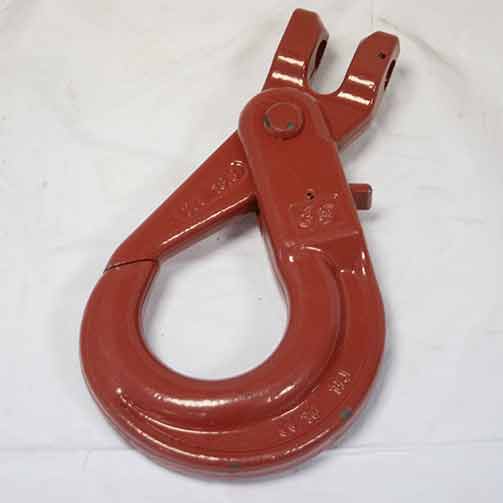

Clevis self locking hook G80 is designed to be used as an en attachment on chain slings. It is similar to normal clevis hook, just that it has a better latch type. Which one is better really depends on personal preferences.
Technical details:
| WLL in kg | Dimensions in mm | Weight
kg/piece |
|||||||
| A | B | C | G | H | R | T | P x L | ||
| 1120 | 28 | 7 | 8 | 16 | 21 | 94 | 35 | 7,5 x 17,5 | 0,50 |
| 2000 | 34 | 9 | 10 | 20 | 26 | 123 | 43 | 9 x 22,5 | 0,93 |
| 2000 | 34 | 9 | 10 | 20 | 26 | 123 | 43 | 9 x 22,5 | 0,93 |
| 3150 | 45 | 12 | 14 | 25 | 30 | 143 | 56 | 13 x 31,5 | 1,58 |
| 5300 | 51 | 15 | 17 | 35 | 40 | 180 | 69 | 16 x 42 | 3,20 |
| 8000 | 60 | 19 | 19 | 36 | 50 | 215 | 80 | 21 x 51,5 | 5,95 |
| 12500 | 70 | 23 | 26 | 60 | 67 | 253 | 90 | 24 x 73 | 9,80 |
| 15000 | 80 | 26 | 32 | 62 | 70 | 287 | 100 | 26 x 72 | 14,40 |
All images are symbolic.
