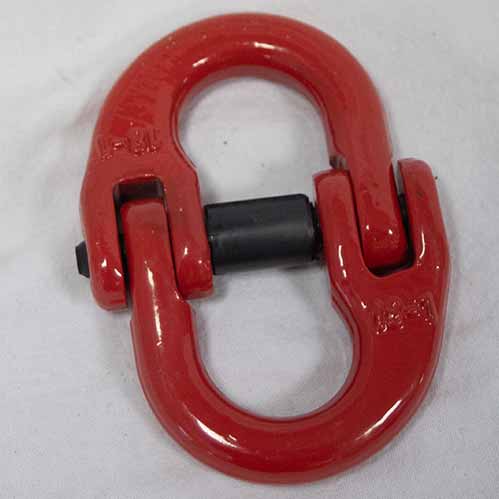

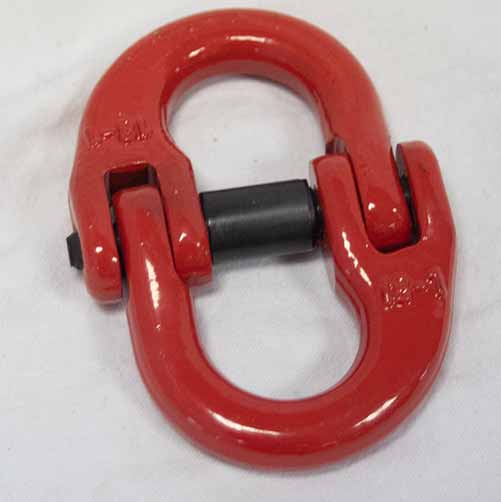

Chain connecting link G80 is used for connecting chain, hooks and master link into a working lifting chain sling.
Technical details:
| WLL in kg | Dimensions in mm | Weight
kg/piece |
|||||
| A | C | O | R | P | S | ||
| 1120 | 16 | 18 | 16,5 | 43 | 7,2 | 6,8 | 0,07 |
| 1500 | 17,8 | 20 | 20,5 | 50,5 | 10,2 | 9 | 0,10 |
| 2000 | 19 | 25,5 | 23,5 | 62 | 11,5 | 10 | 0,25 |
| 3150 | 23,8 | 30 | 27,5 | 72 | 12,6 | 12,6 | 0,35 |
| 5300 | 28 | 36 | 33,3 | 87,3 | 19 | 16,7 | 0,68 |
| 8000 | 34,3 | 40,5 | 39,5 | 103 | 20,6 | 20,6 | 1,10 |
| 12500 | 44 | 48 | 47 | 116 | 23 | 23 | 1,70 |
All images are symbolic.
